30/60
communication and positioning devices

The 30/60 underwater acoustic modems and USBL transceivers with a nearly hemispherical transducer beam pattern are high-speed devices for effective transmissions in reverberant waters, providing data transfer rates up to 31.2 kbit/s over a 1000 m range.

The beam pattern is optimal for horizontal, vertical and slant transfers.

High operating frequency ensures great performance even in noisy environments.

The applications include:

  • Short- and mid-range operations in shallow waters

  • High speed communication tasks

  • Data link and positioning for AUVs and ROVs

  • Underwater acoustic sensor networks

30/60 models are available in the following product lines:

  • S2C R - highly configurable standard build, optionally as OEM without housing

  • S2C M - light and compact build for popular tasks, optionally as OEM without housing

  • S2C T - ultra-light and compact build for space-critical tasks, optionally as OEM without housing

  • S2C R USBL - highly configurable build with integrated USBL antenna for positioning, optionally as OEM without housing

  • S2C R WiSE - special edition with firmware sandbox for developers




TECHNICAL SPECIFICATIONS

General

Operating Depth
Delrin
200 m

Stainless Steel
2000 m
Titanium
2000 m
Operating Range
1000 m
Frequency Band
30 - 60 kHz

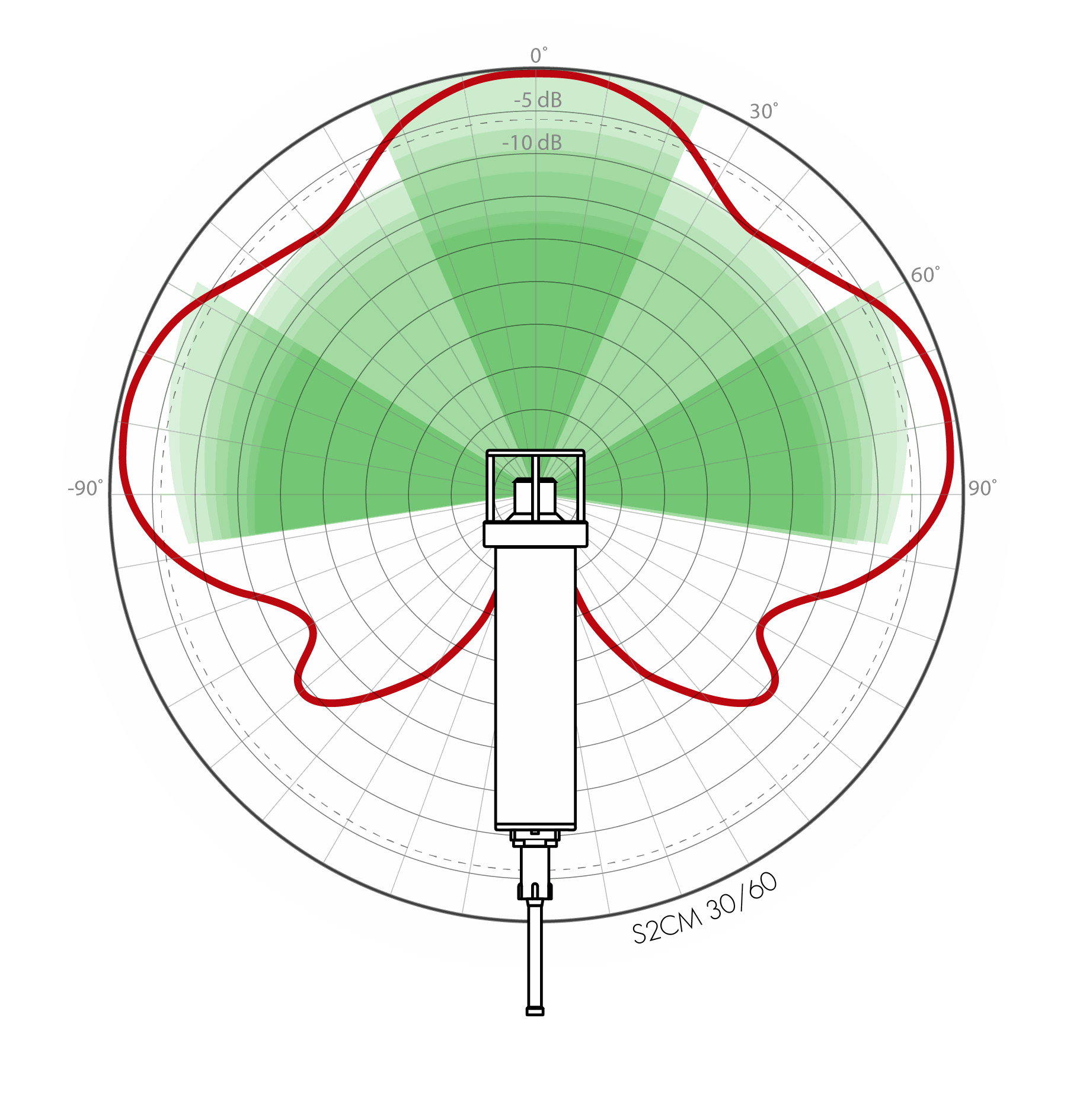

Transducer Beam Pattern
nearly hemispherical

Connection

Acoustic Connection
up to 31.2 kbit/s
Bit Error Rate
less than 10-¹⁰
Internal Data Buffer
1 MB, configurable

30/60 DEVICES - MORE IN Q2 2022
