S2C R 42/65

Underwater Acoustic Modem

S2CR 42/65 with a wide-angle (100 degrees) transducer beam pattern is a high-speed device for communication in vertical, slant and horizontal channels, providing data transfer rates up to 31.2 kbit/s over a 2000 m range (in favorable conditions of the underwater acoustic channel).

High operating frequency ensures great performance even in noisy environments.

High-Speed

High frequency device for fast data transfers

Highly Configurable

Multiple configuration options and extra modules available to best-fit the particular application scenario

Directivity pattern

The beam pattern is optimal for transmissions in vertical and slant channels

S2C R 42/65 - TECHNICAL SPECIFICATIONS

Delrin 200 m
Aluminium Alloy 2000 m
Stainless Steel 2000 m
Titanium 2000 m
Operating Range 1000 m
Frequency Band 42 - 65 kHz
Transducer Beam Pattern wide-angle, 100 degrees
Acoustic Connection up to 31.2 kbit/s
Bit Error Rate less than 10-¹⁰
Internal Data Buffer 1 MB, configurable
Host Interface [1] Ethernet or RS-232
Interface Connector up to 4 connectors, Ethernet and serial combinations
Stand-by Mode 2.5 mW
Listen Mode 5 - 285 mW
Receive Mode 0.8 W
Transmit Mode 5.5 W, 250 m range
Transmit Mode 8 W, 500 m range
Transmit Mode 18 W, 1000 m range
Transmit Mode 40 W, max. available
External 24 VDC (12 VDC, 300 VDC optional)
Internal rechargeable battery
Delrin ✓
Aluminium Alloy ✓
Stainless Steel ✓
Titanium ✓
Housing Ø 110x178 mm
Total length 265 mm
Delrin 2300/400 g
Aluminium Alloy 2100/1400 g
Stainless Steel 8000/5800 g
Titanium 6500/4500 g

1) One RS-232 Interface can be replaced with a RS-422 interface. Contact EvoLogics for more information!
2) Power consumption for RS-232 interface. Add 500 mW if an Ethernet interface is installed. Add 300 mW if the Wake-Up Module is installed. User-configurable Listen Mode is only available with a Wake-Up module installed. Power consumption in Listen Mode depends on Listen Mode settings.
3) Contact EvoLogics for more information on external and internal power supply options.
4) Dimensions of a Delrin housing, other builds are slightly larger.
5) The Wake Up Module is only compatible with RS-232 interface! It is not compatible with Ethernet or RS-422. 2-interface Wake Up Module version reacts to incoming data on two serial interfaces.
6) The Power Switch is only compatible with RS-232 interface! It is not compatible with Ethernet or RS-422.



Specifications subject to change without notice. ©EvoLogics GmbH

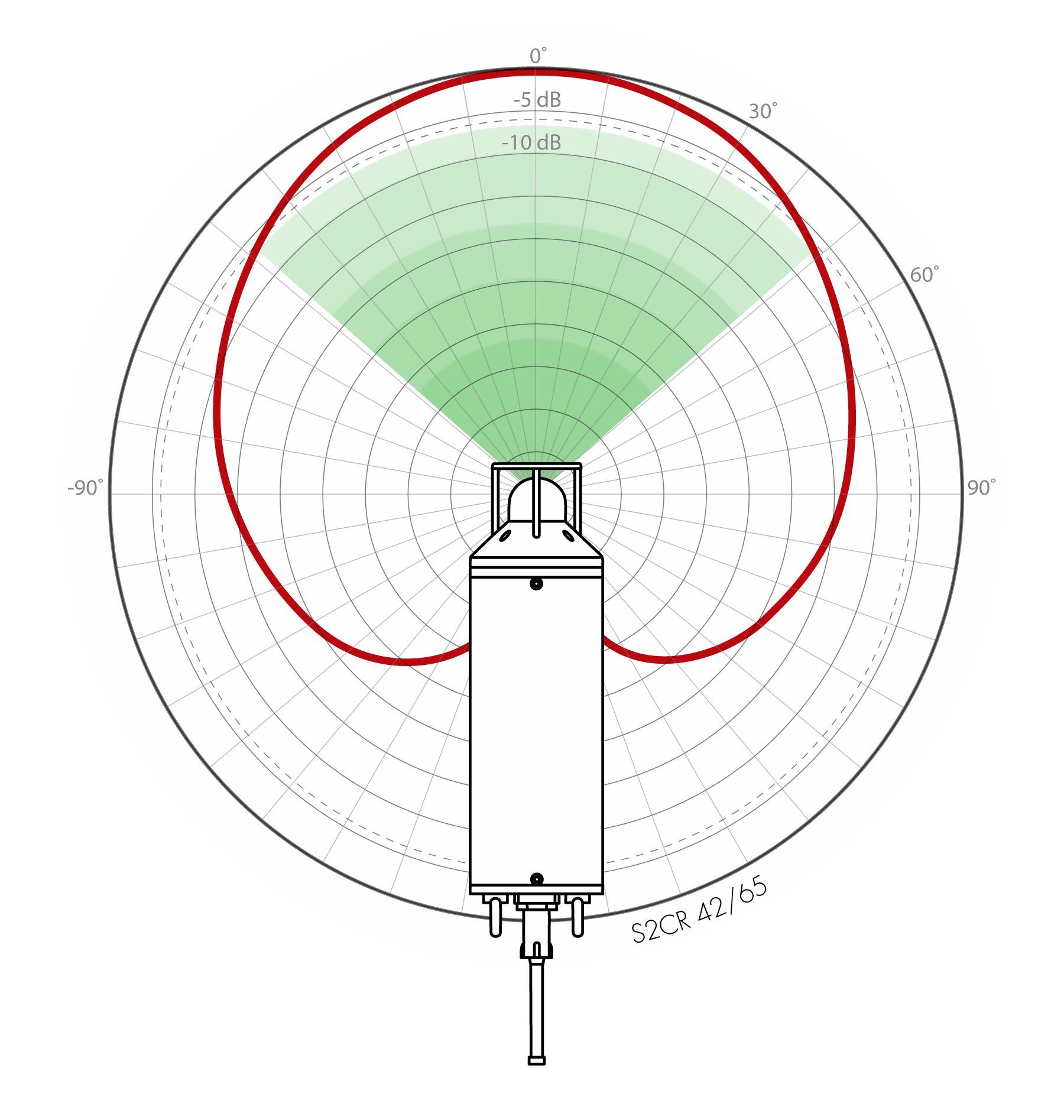

S2C R 42/65 Directivity Pattern

Modules and Options

Wake-Up Module [5]
✓
Power switch [6]
✓
Advanced Timekeeping Module ✓
SDM Version
✓
Acoustic Release Device
✓
Floatation Collar
✓
Pressure Sensor
✓
Cable-Mounted Transducer
✓
OEM-Version
✓
