Depth rated

Depth rated device for long-range data transfers

Highly Configurable

Multiple configuration options and extra modules available to best-fit the particular application scenario

Directivity pattern

The beam pattern is optimal for transmissions in vertical and slant channels



Delrin 200 m
Aluminium Alloy 2000 m
Stainless Steel 2000 m
Titanium 6000 m
Operating Range 8000 m
Frequency Band 7 - 17 kHz
Transducer Beam Pattern hemispherical


Acoustic Connection up to 6.9 kbit/s
Bit Error Rate less than 10-¹⁰
Internal Data Buffer 1 MB, configurable
Host Interface [1] Ethernet or RS-232
Interface Connector up to 4 connectors, Ethernet and serial combinations


Stand-by Mode 2.5 mW
Listen Mode 5 - 285 mW
Receive Mode 0.8 W
Transmit Mode 3 W, 2000 m range
10 W, 4000 m range
40 W, 8000 m range
70 W, max. available
External 24 VDC (12 VDC)
Internal rechargeable battery


Aluminium Alloy
Stainless Steel
Housing Ø 110x178 mm
Total length 246 mm
Delrin 3000/490 g
Aluminium Alloy 4160/1560 g TBC
Stainless Steel 8000/5800 g TBC
Titanium 7780/5180 g TBC

1) One RS-232 Interface can be replaced with a RS-422 interface. Contact EvoLogics for more information!
2) Power consumption for RS-232 interface. Add 500 mW if an Ethernet interface is installed. Add 300 mW if the Wake-Up Module is installed. User-configurable Listen Mode is only available with a Wake-Up module installed. Power consumption in Listen Mode depends on Listen Mode settings.
3) Contact EvoLogics for more information on external and internal power supply options.
4) Dimensions of a Delrin housing, other builds are slightly larger.
5) The Wake Up Module is only compatible with RS-232 interface! It is not compatible with Ethernet or RS-422. 2-interface Wake Up Module version reacts to incoming data on two serial interfaces.

6) The Power Switch is only compatible with RS-232 interface! It is not compatible with Ethernet or RS-422.

Specifications subject to change without notice. ©EvoLogics GmbH

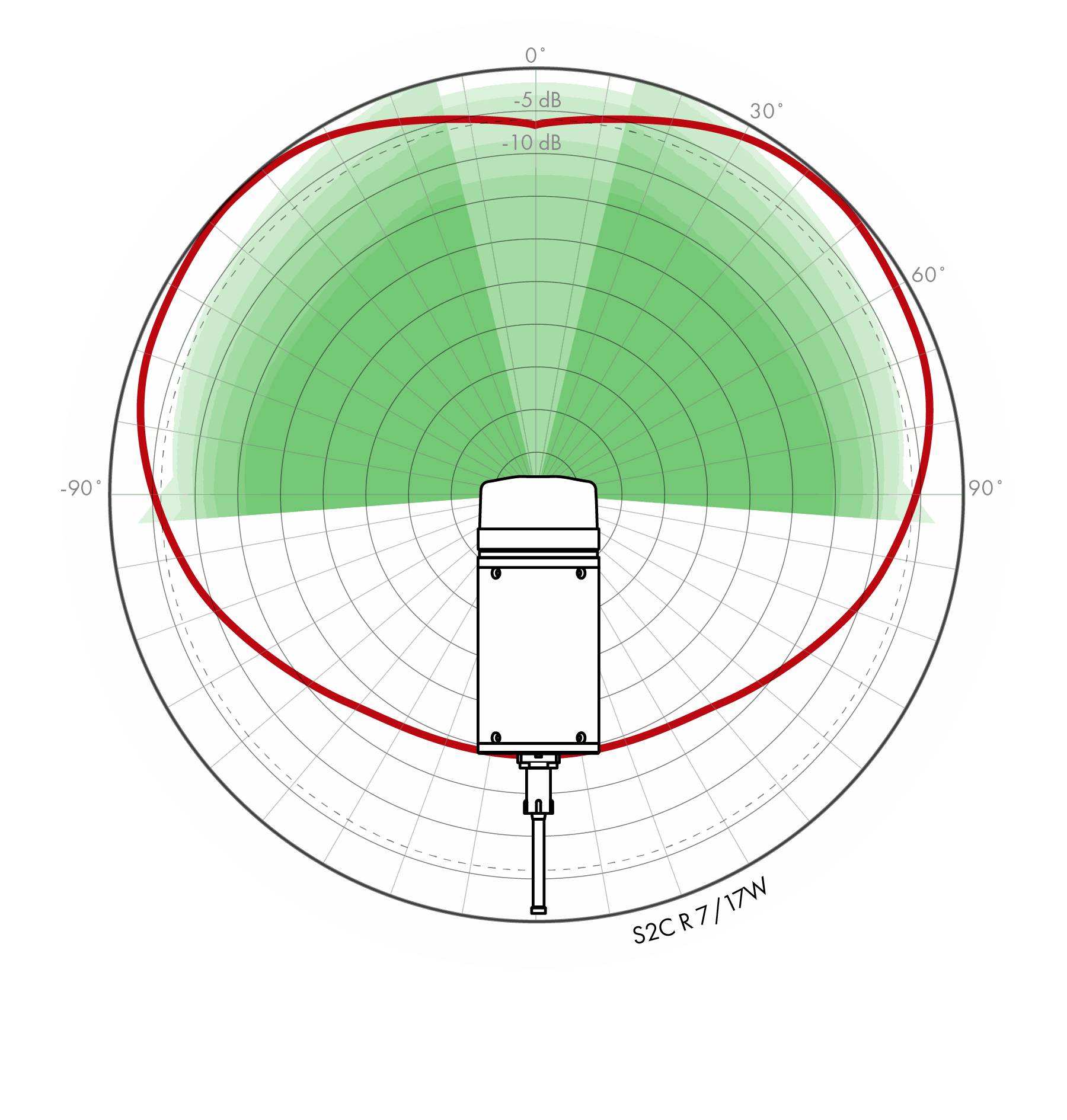

S2C R 7/17W Directivity Pattern

Modules and Options

Wake-Up Module [5]
Power switch [6]
Advanced Timekeeping Module
SDM Version
Acoustic Release Device
Floatation Collar
Pressure Sensor
Cable-Mounted Transducer
